# Concepts and Abstract Model for Reasonable Ontology Templates (mOTTR)

**Specification of the concepts and abstract model of Reasonable
Ontology Templates (OTTR).**

- Version
- 0.1.1
- Published
- 2023 04 06
- Previous version
- https://spec.ottr.xyz/mOTTR/0.1/
- Authors
- Leif Harald Karlsen

Martin G. Skjæveland - Issues
- https://gitlab.com/ottr/language/mOTTR/issues

## 1 Introduction

This specification defines a formal ontology templating mechanism [1] that underlies the templating language Reasonable Ontology Templates (OTTR).

### 1.1 Document conventions

#### 1.1.1 Notation

This is the first main occurrence of a *defined term*.

This is a mention of an already defined term.

## 2 Fundamentals

### 2.1 Types

We assume that we have a set of *types*. Types are arranged by
*subtype* relationships, where subtype is a reflexive and
transitive relation over the set of types. *Supertype* is the
inverse relationship of subtype.

A type is either a *basic type*, a *list type* or a *LUB-type*.

There is a basic type named *Top*, which is supertype of every other type,
and a basic type named *Bot* which is subtype of every other type.

There are two list types **List** and **NonEmptyList** which take
another type as argument. We assume that there is one type **List<P>** and one type
**NonEmptyList<P>** per other type **P**. **NonEmptyList<P>** is a subtype
of **List<Q>** for all types **P** and **Q** where **P** is a subtype of **Q**.

For every basic type **P** there is also a LUB-type **LUB<P>**, (least upper bound)
such that **LUB<P> subtype P**.

*Compatible* is the least relation between types such that

**P**is compatible with all supertypes of**P**.**LUB<P>**is compatible with all subtypes of**P**.

We define the *occurs at depth* as follows, for any types **P** and **Q**:

**P**occurs at depth**0**in**P**- if
**P**occurs at depth**n**in**Q**, then**P**occurs at depth**n+1**in**List<Q>**and**NonEmptyList<Q>**.

For example **P** occurs at depth **2** in **NonEmptyList<List<P>>**.
We are only going to use this definition in order to relate depths
of terms in lists to the type at corresponding depths
in complex list types.
However, note that for **LUB<P>**, **P** must be a basic type and
can therefore not be a list type.
It is therefore no **n** such that **P** occurs at depth **n** in **LUB<P>**,
but e.g. **LUB<P>** occurs at depth **1** in **NonEmptyList<LUB<P>>**.

### 2.2 Terms

We assume that there are two sets, *constants* and *variables*,
which are possibly overlapping. We call the union of these the sets
*terms*.

The set of constants include *lists* which are ordered collections of
terms. The constant *nil* denotes the empty list. The type of
nil is **List<Bot>**, and the type of nonempty lists is **NonEmptyList<LUB<Top>>**.

No term has type **Bot**.

We define the *occurs at depth* over terms similarly as for types:

- a term
**a**occurs at depth**0**in**a**, - if a term
**a**occurs at depth**n**in**b**, then**a**occurs at depth**n+1**in any list where**b**is a member.

### 2.3 Templates

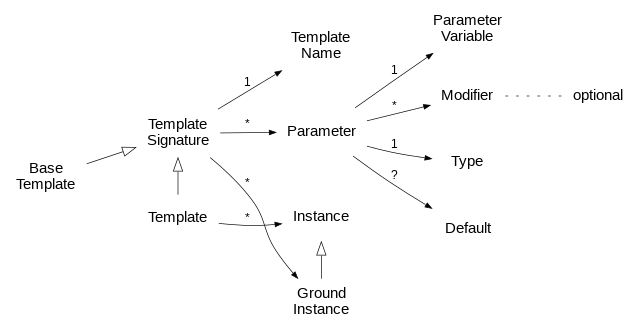

A *template signature* (or just *signature*) consists of a
*template name*, which is a constant term,
and a list of parameters.

A *parameter* consists of a *parameter variable*, which is a
variable term, and a type. Additionally, a parameter may have a
default value which is a constant term and be marked with one or more
*modifiers*. The set of modifiers contains *optional*.

The *arity of a signature* is the size of its parameter list.

The *type of a variable* is the type of its parameter.

All parameter variables in a signature's list of parameters must be different.

Additionally, a template signature may be have *annotations*, which
is a set of ground template instances
(to be defined below); we call these *annotation instances*.

A *template* is a *template signature* with a *pattern*, which is a
(possibly empty) set of template instances (to be defined below); we
call these *pattern instances*.

A *base template* is a specific type of *template signature* that may not have a
*pattern*.

### 2.4 Template instances

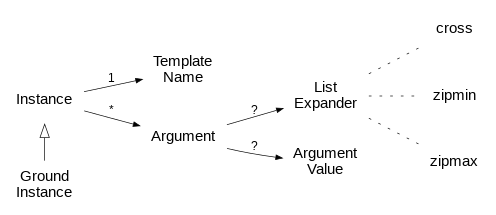

A *template instance* (or just *instance*) consists of a template name and a list of
arguments.

An *argument* consists of possibly an *argument value* (or just *value*),
which is a term, and possibly a list expander.

The set of *list expanders* contains the tokens *cross*, *zipmin* and *zipmax*.

The *arity of an instance* is the size of its argument list.

A *ground template instance* is a template instance where the
value of every argument, if present, is a constant.

We say that a template instance **I** is the *instance of* a
template signature **T** with the same template name as **I**. For an
argument **a** in instance **I** of signature **T**, we say that its
*corresponding parameter of T* is the parameter with the same
index in the parameter list as the index of

**a**in the argument list of

**I**.

## 3 Collections of templates and instances

### 3.1 Template library and dataset

A *template library* is a set of template signatures. (Note that
templates and base templates are also template signatures.)

A *template dataset* consists of a template library
and a set of ground template instances.

#### 3.1.1 Consistent use of terms

For a term **v**, we say that **v** has *inferred type* **P** if **v** is a term in an argument **t** at depth **n** and either:

**t**is without list expander, with a corresponding parameter with a type having the type**P**at depth**n****t**has a list expander, with a corresponding parameter with a type having**P**at depth**n-1**

A term **v** is *consistently typed* in a set of instances
if there exists a type **P** unequal **Bot** such that

**P**is a subtype of all inferred types of**v**, and- the type of
**v**is compatible with**P**.

A set of instances is consistently typed if every term occurring in it is consistently typed.

A template library is *consistently typed*
if the set of all instances occurring in it is consistently typed.

A template library is called *variable safe* if

- no variable occurs in two different templates in the library;
- no template has a variable which equals a constant used in a template which it depends upon;

#### 3.1.2 Correct instantiation of templates

*Directly depends* is a relation between a set of templates and a
set of template signatures such that **T** directly depends on **S** if
an instance of **S** occurs in the pattern of **T**.

A template library is *acyclic* if the
directly depends relation is *acyclic*.

A set of instances is said to have *referential integrity*
with respect to a template library if
every instance has a name corresponding to a template signature
in the library, and that the arity of the instance
equals the arity of the corresponding template signature.

A template library is said to have *referential integrity*
if no two templates have the same name and the set of
all instances occurring in it has referential integrity
with respect to it.

A template signature is *well founded* if it is a base template
or if it is a template that only depends
on well founded templates. A template library
is *well founded* if it only contains well founded
templates.

### 3.2 Valid template library

A *semi-valid template library* is a template library that:

- is consistently typed,
- is variable safe,
- is acyclic, and
- has referential integrity.

A *valid template library* is a semi-valid template library that
is well founded.

### 3.3 Valid template dataset

A *valid template dataset* is a template dataset where:

- its template library is valid, and
- its set of instances is consistently typed and has referential integrity with respect to the template library.

A *strict template dataset* is a valid template dataset with the
additional requirement that ground template instances must have
value for
arguments to corresponding parameters which are marked as
optional.

## 4 Expansion

### 4.1 Instance Expansion

The *direct expansion* of a template instance **I** of **T** is
defined as follows:

- if one or more arguments of
**I**has a list expander, new instances of**T**from**I**in 2-step process:- First, arguments are preprocessed:
- an argument without a list expander treated as a singleton list containing its argument value,
- an argument with no value and with a list expander is treated as just an argument with no value (the list expander is removed),
- other arguments are left as-is.

Then, an operation determined by the list expander is applied to argument list of

**I**:- if the list expander is cross, the operation is the Cartisian product
- if the list expander is zipmin, the operation is Convolution - stopping after the length of the shortest list
- if the list expander is zipmax, the operation is Convolution - increasing the length of shorter lists to the length of the longest list, but appending no values.

The result of the direct expansion of

**I**is the union of the direct expansion of all the generated instances.

- First, arguments are preprocessed:
- if one or more arguments of
**I**has no value and its corresponding parameter is not optional and has no default value, then the result of the direct expansion of**I**is the empty set. - if
**T**has no pattern, i.e.,**T**is a base template or a signature (and not a template), then the direct expansion of**I**is**I**. otherwise, we build the

*induced substitution*by considering each argument**S**of**T**and**I****a**of**I**and its corresponding parameter**p**in**T**:- if
**a**has no value and**p**has a default value**d**, then**S**:=**S**∪ {**p**/**d**} - otherwise,
**S**:=**S**∪ {**p**/**a**}

The result of the direct expansion of

**I**is the set of instances resulting from applying the substitution**S**to the pattern of**T**.- if

The *expansion of an instance* **I** of a signature **T** is the
result of recursively applying direct expansion on **I** until each
instance is either:

- an instance of a template without a pattern—in which case the expansion naturally terminates, or
- it is underspecified, which occurs in two cases:
- an argument has a variable as value and has a list expander, or
- an argument has a variable as value and the parameter to which the variable belongs is marked optional while the argument's corresponding parameter is not optional or has a default value.

The *expansion of a template dataset* is the expansion of the set of
instances of the dataset, with respect to the signatures in the
corresponding template library.

We call an expansion *complete*, if the result contains only
instances of base templates or signatures.

We call an expansion *ground*, if the result contains only instances
of base templates.

### 4.2 Template Expansion

The *annotation expansion of a template signature* is the result replacing
the annotation instances of the template signature with their expansion.

The *pattern expansion of a template* is the result replacing
the pattern instances of the template with their expansion.

The *expansion of a template* is the result of performing both
annotation expansion and pattern expansion on the template.

## 5 References

- Making a Case for Formal Relations over Ontology Patterns
- Daniel
P. Lupp, Leif Harald Karlsen, and Martin G. Skjæveland:
*Making a Case for Formal Relations over Ontology Patterns*. Workshop for Ontology Design Patterns (WOP). 2018. http://ceur-ws.org/Vol-2195/research_paper_5.pdf
